Venue Specs

venue-spread

Urban Lounge is a 21+ concert venue strategically located within walking distance between Downtown and the University of Utah in Salt Lake City. Since taking ownership in August 2008 Urban Partners has made numerous improvements to the venue in an effort to create the most enjoyable concert experience possible.

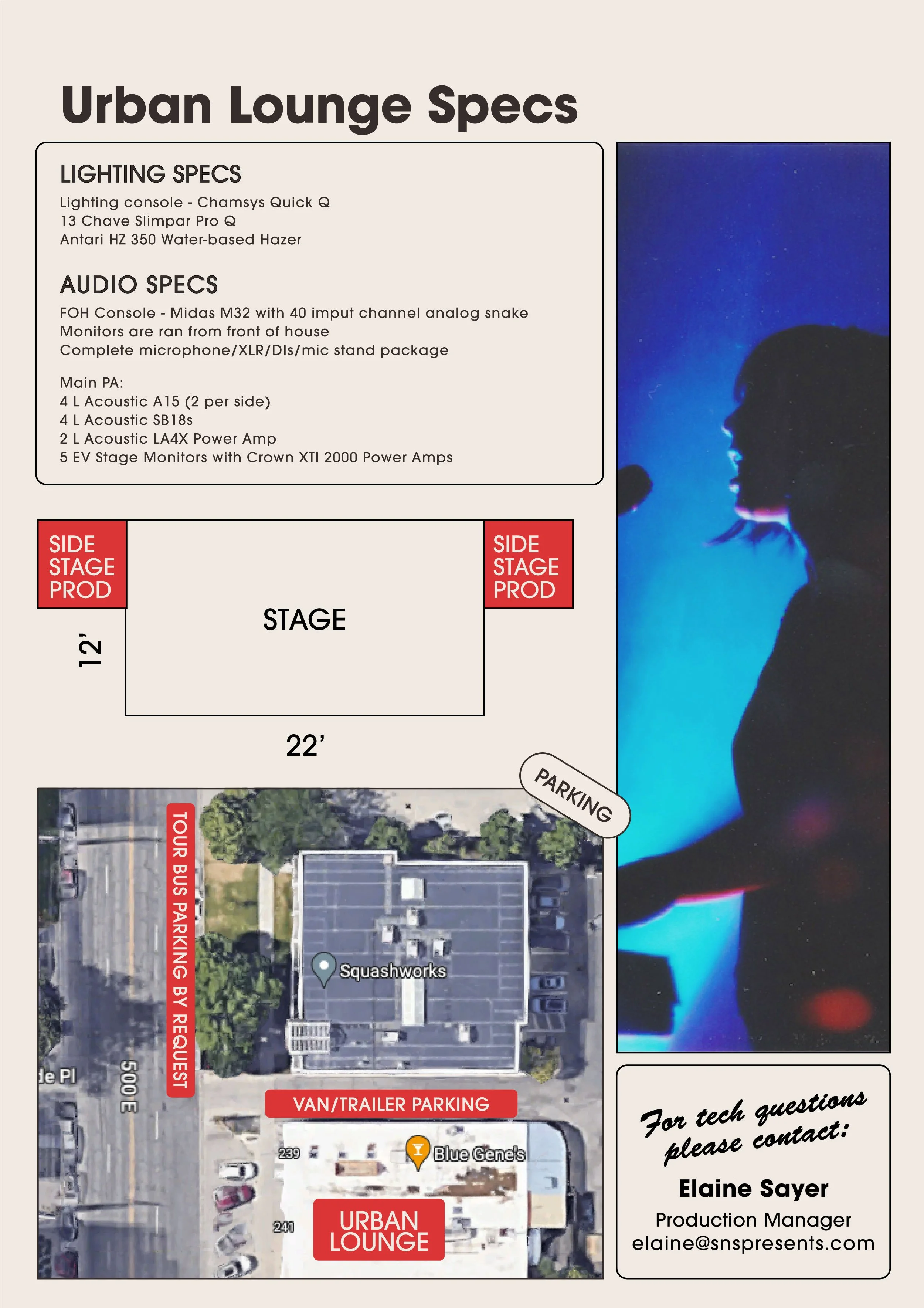

Download a PDF of our Venue Specs here.

ADDITIONAL FEATURES

Clean and spacious green room.
Private restroom for artists adjoining the green room.
Bus parking available. Please give advance notice.
Dedicated F.O.H. & monitor booth

STAGE SIZE

22 feet wide x 12 feet deep

STAGE HEIGHT

2 feet six inches

LIGHTING

24 LED Lights with Martin Exciter Board

ADDITIONAL POWER FOR LIGHTING

100 Amp camlocks or three isolated 20 Amp standard outlets

PROJECTOR

Available upon request

VIDEO SCREEN

12 wide by 10 height.
Stage to Ceiling Height: 9 feet 6 inches

F.O.H. DESK & PROCESSING

1- Yamaha M7CL
2-Ashly GQx 3102 EQ (One on Main & One for Center fill)
5-Dbx 2231 EQ
1-Presonus ACP 88 8-channel comp/gate 3-Dbx 266 XL
comp / gate / limiter 1-Dbx 1066 XL comp / gate / limiter
1-t.c. electronics M-one Duel Effects Processor
1-t.c. electronics D-two Multitap Rhythm Delay 1-Dbx
Drivrack PA

6-DB Technologies DVA T8 Active Line Array Boxes (3 boxes per side)
2-BD Technologies DVA T4 Active Line Array Boxes (Center Fill)
4-DB Technologies DVA S30N Active Subwoofer Dual 18″ Boxes

Monitors
1-48 Channel Sound Craft Monitor

4-Bi-Amped EV PX 1152M Monitors
4-Bi-Amped EAW SM500iV Monitors
1-EV TX1152 18″ Sub (Drum Sub)

4-Crown XTI 2000 (Bi-Amped EV Monitors)
3-Crown Macro-Tech 2402 (Bi-Amped EAW Monitors)
1-Crown SX 1200 (Drum Wedge)

MICROPHONES

1-Audix D-6
2-Audix D-4s
1-Audix I-5
4-Shure SM 57s
6-Shure SM 58s
2-Audix OM5s
1-Shure Beta 58
2-AKG D112s
2-Senheiser 609
1-Crown c700 Condenser Mic
1-Shure SM81Condenser Mic
2-Shure SM137-LC Condenser Mic
4-Radial Pro Passive Direct Boxes
8-Whirlwind IMP Passive Direct Boxes

Tech Questions?

Scott Schilling
801.793.5567
scott@sartainandsaunders.com
